Product Details
Facial Recognition Thermometer Kiosk for COVID-19
Color: Silver
Country: China
Model: ONT-SV-1081D
SPECS: 8 Inch
Product Details

New Arrival Pass Management Kiosk for Temperature Measurement & Face Recognition, Specially designed for COVID-19/Coronavirus.


Introduction

ONT-SV-1081D, pass management vertical module of temperature measurement & face recognition uses Rockchip RK3288 / RK3399 / Qualcomm MSM8953 high-performance hardware platform, equipped with industrial-class binocular camera, live face recognition technology and infrared thermal imaging module to support face-with-mask identify. It also supports expansion of various peripherals such as ID card readers, fingerprint readers, etc., which can be applied to gate passages and attendance system to achieve safe and efficient access control for personnel.


Features

1. 8-inch IPS full-view LCD display.

2. Industrial-class appearance, waterproof and dustproof design which is stable and reliable.

3. Supports 30,000 face database. The 1: 1 comparison recognition rate is more than 99.7%, the 1: N comparison recognition rate is more than 96.7%@0.1% misrecognition rate, and the live detection accuracy rate is 98.3%@1% misrejection rate. Face recognition pass speed is less than 1 second.

4. Supports accurate face recognition and comparison while wearing a mask.

5. Using industrial-grade binocular wide dynamic camera, night infrared and LED dual photo flood lamp.

6. Support processors with strong performance: Rockchip RK3288 quad-core processor, Rockchip RK3399

six-core processor and Qualcomm MSM8953 octa-core processor.

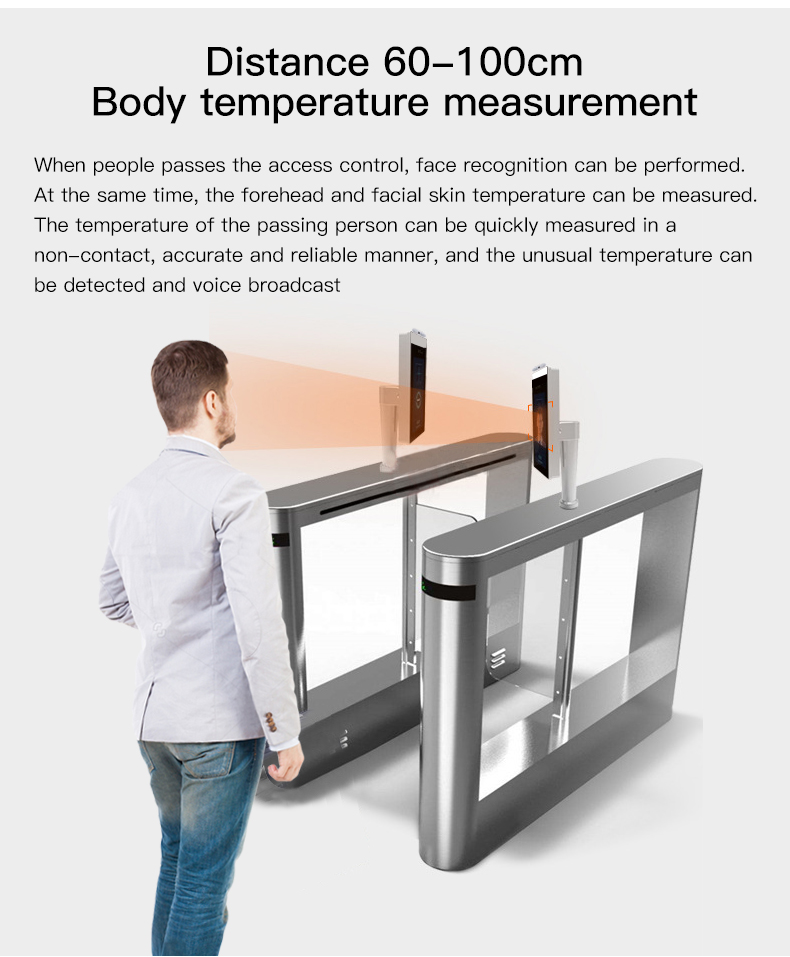

7. Supports human body temperature detection and temperature display. The best temperature detection distance is 0.5 meters. The longest distance at which body temperature can be measured is 1 meter. The measurement error is plus or minus 0.5 ℃.

8. It only takes a few seconds for detection, and supports automatic alarm for body temperature abnormality.

9. Attendance temperature measurement data is exported in real time.

10. Supports various peripheral expansions such as ID card reader, fingerprint reader, IC card reader, two-dimensional code reader, etc.

11. The documentation is complete and supports secondary development.

12. Support system level, APP offline level, APP + background network level multiple API docking.


Technical Parameters

Interface

Network module

Ethernet and wireless (WIFI)

Audio

2.5W / 4R speakers

USB

1 USB OTG, 1 USB HOST standard A port

Serial communication

1 RS232 serial port

Relay output

1 door open signal output

Wiegand

One Wiegand 26/34 output, one Wiegand 26/34 input

Upgrade button

Support Uboot upgrade button

Wired network

1 RJ45 Ethernet socket

Function

Credit card reader

None (optional IC card reader, ID card, ID card)

Face Detection

Supports detection and tracking of multiple people at the same time

Face library

Up to 30,000

1: N face recognition

Support

1: 1 face comparison

Support

Stranger detection

Support

Identify distance configuration

Support

UI interface configuration

Support

Upgrade remotely

Support

Interface

Interfaces include device management, personnel / photo management, record query, etc.

Deployment method

Support public cloud deployment, privatized deployment, LAN use, stand-alone use

Infrared thermal imaging module

Temperature detection

Support

Temperature detection distance

1 meter (optimal distance 0.5 meter)

Temperature measurement accuracy

≤ ±0.5℃

Temperature measurement range

10℃~42℃

Thermal field of view

32 X 32℃

Visitors' temperature is normal and released directly

Support

Abnormal temperature alarm

Support (temperature alarm value can be set)

General parameters

Power

DC12V(±10%)

Operating temperature

0℃~60℃

Storage temperature

-20℃~60℃

Power consumption

13.5W(Max)

Installation method

Gate bracket installation

Size

Standard:274.24*128*21.48(mm)
IC card / ID card:296.18*132.88*25(mm)

Packing List

Machine * 1, power adapter * 1, manual * 1, certificate of conformity * 1


Appearance and size



Wire interface definition



Applications

Can be used with access gates and attendance for communities, office buildings, schools, hotels, scenic spots, transportation hubs and other public service places.
